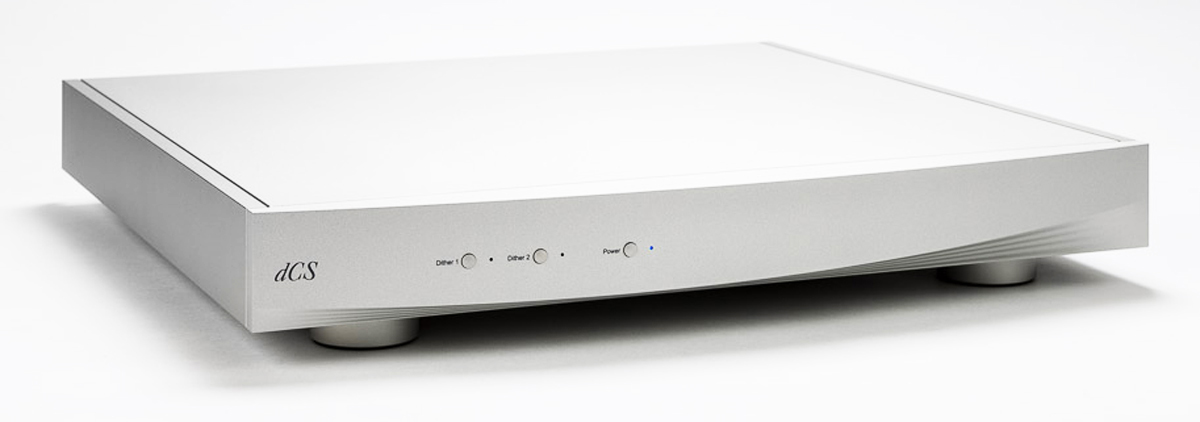

dCS Rossini Clock

  • Designed for maximum flexibility as output configuration can be optimised in systems with a wide variety of digital audio sources



  • Dual crystal oscillators with microcontroller-enhanced temperature correction



  • New dual frequency output and auto- clocking mode used in the Vivaldi and Rossini range improves ease of use and minimises jitter, particularly with computer audio sources
  • Multi-stage regulation ensures sensitive clock and PLL circuitry is unaffected by digital interference



  • Aerospace-grade machined aluminium chassis fitted with tuned acoustic damping panels reduces magnetic effects and vibration

Teknik Özellikler

Type

Class 1 Master Clock

Clock

44.1kHz or 48kHz

Colour

Silver or Black

Dimensions

444mm/17.5” x 435mm/17.2” x 64mm/2.6”. Allow extra depth for cable connectors

Weight

8.3kg/18.3lbs

Clock Accuracy

Better than +/-1ppm when shipped, over an ambient temperature range of 10°C to 30°C. Typically +/-0.1ppm when shipped and stabilised

Wordclock Outputs

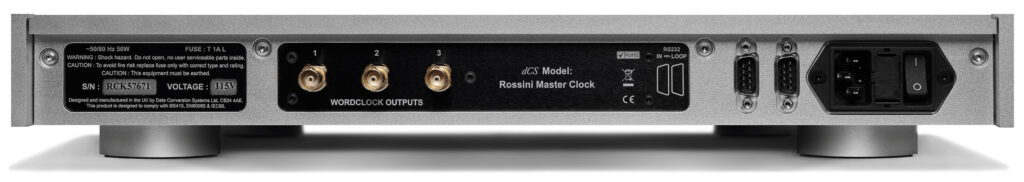

3 independently buffered outputs on 75Ω BNC Connectors. Output 1: fixed at 44.1kHz. Output 2: fixed at 48kHz. Output 3: 44.1kHz, switchable to 48kHz via RS232

Startup Time

Typically 1 minute to rated accuracy

Local Control

RS232 (limited to Power and Clock 3 output frequency)

Power Supply

Factory set to either 100, 115/120, 220 or 230/240V AC, 50-60Hz

Power Consumption

3 Watts typical / 4 Watts maximum
