MARTIN BROTHER AUDIO

MARTIN BROTHER AUDIO

Professional Speaker Systems

F8
Ultra-compact two-way passive
1×8″/2″ LF driver, 1 x 1” HF driver
Frequency response:70Hz-20kHz±3dB
Rated Power:150W, 600W Peak
Impedance: 8 ohms: Weight:12kg

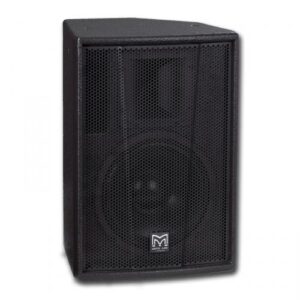

F10
Compact two-way passive
1×10″/2.5″ LF driver, 1 x 1” HF driver
Frequency response:65Hz-20kHz±3dB
Rated Power:300W,1200W peak
Impedance: 8 ohms; Weight:17kg

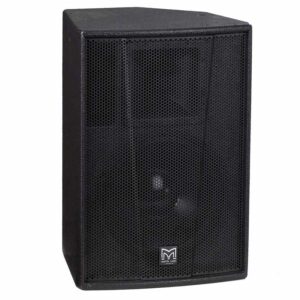

F12
Compact two-way passive
1×12″ LF driver, 1 x 1” HF driver
Frequency response:65Hz-18kHz±3dB
Rated Power:300W,1200W peak
Sensitivity: 97dB, Max@1M:120dB, 126dB peak
Impedance: 8 ohms: Weight:21kg

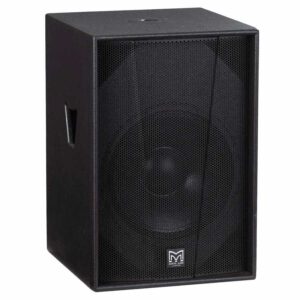

S15
Compact, vented sub bass system 1×15″ bass driver, Frequency response:45Hz-120Hz±3dB Rated Power:500W,2000W peak Impedance: 8 ohms Sensitivity: 98dB, Max@1M:123dB, 129dB peak Weight: 38.5kg

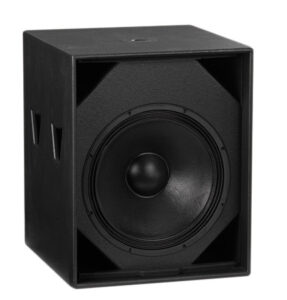

S18
Compact, vented sub bass system,1×18″
Frequency response:40Hz-120Hz±3dB
Rated Power:500W,2000W peak
Impedance: 8 ohms
Sensitivity: 99dB, Max@1M:124dB, 130dB peak
Weight: 45kg

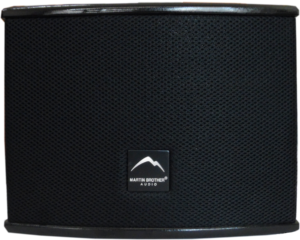

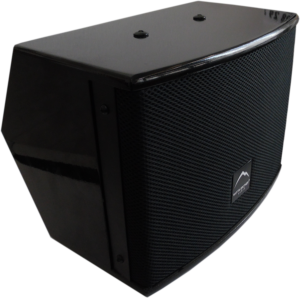

KV8
Type: 8” two-way coaxial system
Drivers: 8” coaxial dirver
Frequency response: 70Hz-18kHz ±3dB
Rated Power: 120W, 240W peak;
Dimensions: (W) 300mm x (H) 229mm x (D) 232mm
Weight: 6kg

KV10
Type: 10” two-way coaxial system
Drivers: 10” coaxial dirver
Frequency response: 60Hz-18kHz ±3dB
Dimensions: (W) 360mm x (H) 286mm x (D) 207mm
Weight: 6kg

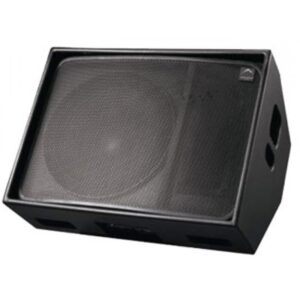

LE400B
Two-way stage monitor Frequency Response: 50Hz-18kHz ± 3dB Drivers: 15″ (380mm)/3″ (75mm) voice coil; 1″ (28mm) exit HF compression driver Rated Power: FR: 350W AES,1400W peak Dimensions:(W) 660mm x (H) 470mm x (D) 554mm
