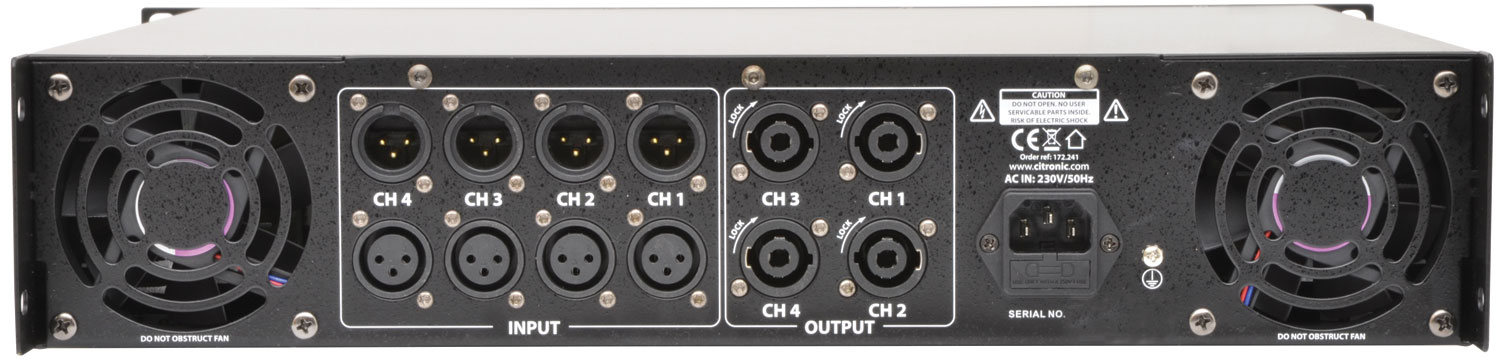

4 Channel Power Amplifier
QP-1600
Description
Technical Specifications
Downloads
Description
A range of quad power amplifiers with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount.
Fully balanced signal path
Stable down to 2 Ohms
2U rack-mountable
Technical Specifications
- Power supply: 230Vac, 50Hz (IEC)
- Giriş : line 4 x XLRF balanced
- Çıkış : line4 x XLRM (girişlerle paralel)
- Giriş empedansı: 20k Ohms
- Frekans cevabı: 5Hz – 50kHz
- THD: 0.05%
- Çökme oranı: 40V/usec
- S/G oranı: 103dB
- Kontroller: 4 x kanal kazancı
- Hoparlör çıkışları: 4 x SPK bağlantısı
- Koruma: Kısa devre, DC aşımı, yumuşak başlatma
- Boyutlar: 483 x 439 x 88mm
| Güç rms @ 8 Ohm | 4 x 200W | |
|---|---|---|
| Güç rms @ 4 Ohm | 4 x 300W | |
| Güç rms @ 2 Ohm | 4 x 400W | |
| Ağırlık | 22kg |
